Cogeneration Systems
Configuration of Cogeneration
Configuration of Tri-generation- GTG : Gas turbine generator
HRSG : Heat Recovery Steam Generator
STG : Steam turbine generator
SAC : Steam Absorption chiller
Cogeneration system is one of solution to save a energy for supplying and distributing electricity and heat energy.
Heat energy are produced by exhaust gas and/or jacket cooling water.
-
- Power generation
- Gas turbine generator
Steam turbine generator
Reciprocating generator
Fuel cell
etc.
-
- Steam generation
- Water tube type heat recovery
Steam generator
Smoke tube type heat recovery
Steam generator
-
- Heat energy usage
- Process steam supply
Hot water supply
Chilled water supply
-Steam driven centrifugal chiller
-Steam absorption chiller
University Technology of Petronas (Malaysia)
Project Description
Power and chilled water are supplied to facilities of University Technologies of Petronas. Its unique configuration is available to achieve the high effective operation due to peak cut of both daily peak demand of power and chilled water. The chilled water thermal storage tank is effective for leveling of power generation too.
Date of completion: Oct 2001
- GTG : Gas turbine generator
HRSG : Heat Recovery Steam Generator
AGB : Auxiliary boiler
SAC : Steam Absorption chiller
ACC : Air cooled chiller
TES : Chilled Water Storage Tank
-
- Major Equipment are as follows
- GTG : 4.2 MW x 2 units (future add 2 more units)
HRSG : 10 ton/h x 2 units (future add 2 more units)
AGB : 15 ton/h
SAC : 1250 RT x 2 units (future add 2 more units)
ACC : 325 RT x 2 units (future add 2 more units)
TES : 10,000 RTH
-

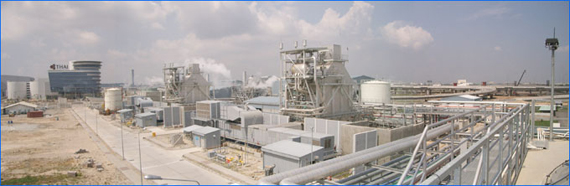

Second Bangkok International Airport (Thailand)
Project Description
Power, process steam and chilled water are supplied to New Airport Facilities including Main Terminal Buildings and Thai Air Catering Center.
Date of completion: Feb 2006
- GTG : Gas turbine generator
HRSG : Heat Recovery Steam Generator
STG : Steam turbine generator
AGB : Auxiliary boiler
SAC : Steam Absorption chiller
SWG : Switchgear
-
- Major Equipment are as follows
- GTG: 20 MW x 2 units (GE Frame 5) Supplied by EGAT
HRSG : 42.5 ton/h x 2 units
STG : 13.5 MW x 1 unit
AGB : 18 ton/h x 2 units, 20 ton/h x 2 units
SAC : 1500 RT x 3 units, 1970RT x 2 units
SWG : 115kv 7 bays
-
